TBS 300

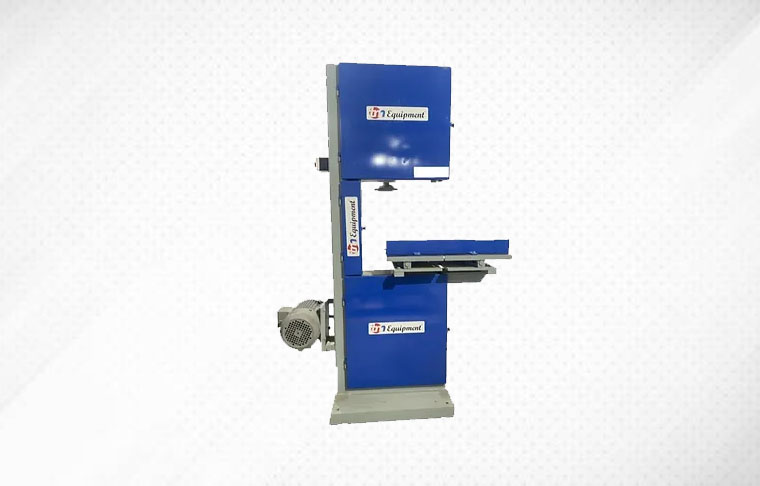

The TBS 300 is a robust 3-phase bandsaw machine designed for cutting concrete blocks, equipped with a powerful 3 HP motor. It is capable of cutting materials up to 300 mm in height and 600 mm in length with ease, featuring a saw blade that operates at 600 RPM. Its primary purpose is to effortlessly slice through tough materials such as concrete and masonry. This bandsaw prioritizes safety and includes a heavy-duty belt guard.
The 3 HP motor of the TBS 300 cutting machine, coupled with the 600 RPM saw blade, ensures efficient cutting through challenging materials, enabling smooth and precise operations.
The heavy-duty belt guard ensures additional safety by preventing access to moving parts.
Features :
- Dimensions
- Flywheel Diameter
- Saw Band Length -Cutting Capacity
- 3 HP motor
- Electric control box
- Heavy-duty belt guard
- IP 65 motor with copper winding
Specifications :
| Cutting Height | 300 mm |
|---|---|
| Cutting Length | 600 mm |
| Saw Flywheel Diameter (mm) | 460 mm |
| Saw RPM | 600 mm |
| Motor Power (kw) | 2.2 kw |
| Saw Band Length (mm) | 3790 mm |
| Max Saw bench Dimension (mm) | 550 X 660 |
| Length (mm) | 1300 mm |
| Width (mm) | 610 mm |
| Height (mm) | 1770 mm |
| Weight (kg) | 250 mm |
