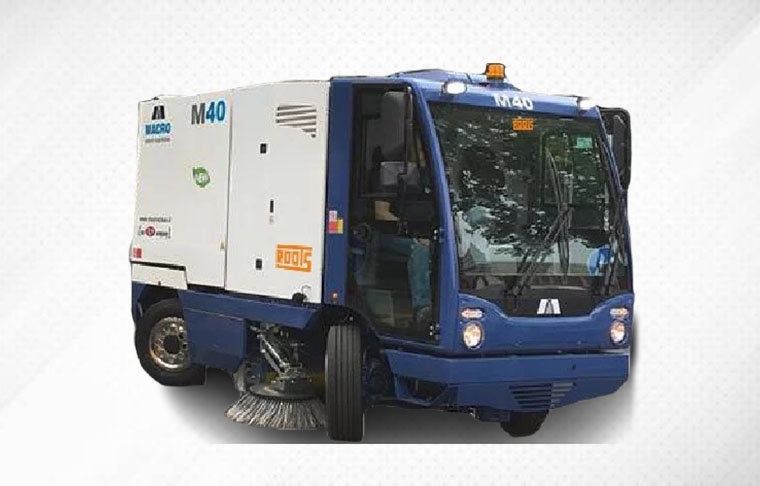

Macro M40 Self PropelledCity Sweeper
Roots Multiclean offers reliable and proven City sweeper – Macro M40. The Sweeper uses mechanical power of the brush to pick up the debris, as well as the vacuum fan to filter fine particulates and clean without raising dust.It’s Suction is optimized to allow the full suppression of dusts thanks to the large surface filter.
The combination of automotive and hydraulic sector technologies, balanced with human experience and creativity, makes the Macro M 40 an easy-to-use and environmentally friendly machine, also featuring low management and consumption costs.
Specifications Sweeping Width :
| With central roll brush only | 1300 mm |
|---|---|
| With central roll brush and right-hand side brush | 1900 mm |
| With central roll brush and 2 side brushes(standard) | 2500 mm |
| With central brush, 2 side brushes and 3rd front brush(opt) | 3300 mm |
Specifications Hopper And Water Tank :
| Hopper Valume | 4 m3 |
|---|---|
| Net homologated payload | 6000 kg |
| Hopper dumping height | 1,1m(opt/2,30m) |
| Water tank capacity (with optional water spraying system) | 620 l / opt(1220 l) |
Specifications Engine And Drive System :
| Volvo Penta Diesel Engine Tier3A Intercooler Water Cooled | 105/143 kw/hp |
|---|---|
| Driving system | Hydrostatic |
| Maximum speed | 42 km/h |
| Maximum gradient full load | 20 % |
Specifications Other Features :
| All Functions Control | Electro - Hydraulic |
|---|---|
| Turning radius | 4430 mm |
| Steering system | 4-wheel power st. |
| Full load weight (without/with 3rd front extendable brush) | 13250 / 13400 kg |
