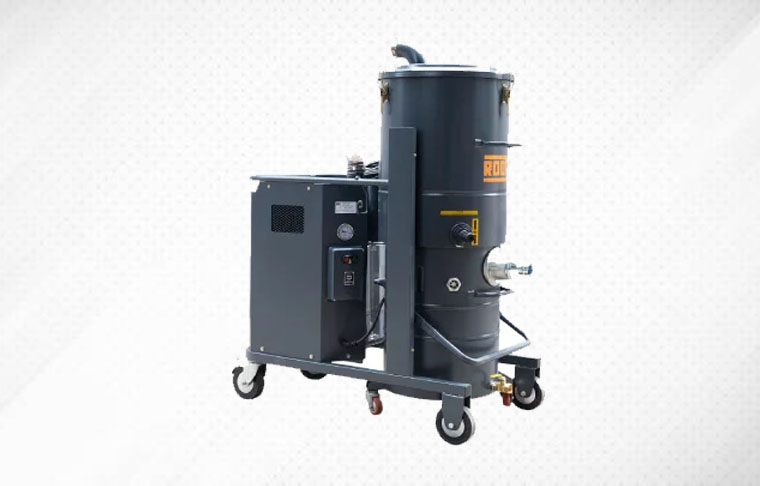

IVC 100 HD - Heavy Duty Industrial Vacuum Cleaner
Power
The IVC 100 HD machine is provided with side channel blower from the world’s best manufacturers, to improve the quality and performance. The side channel blower is powerful, silent and suitable for continuous and heavy works and don’t require maintenance as they don’t wear since there is no transmission system.
Filtration
The IVC 100 HD machine is provided with a filter surface up to 30,000 cm² and air load on filter (m³/m³/h) according to BIA standards to maximize the efficiency, vacuum performance and lifetime of the machine.
Flexibility
The IVC 100 HD machine is designed to draw in dust and solids at the same time. The releasable wheeled container aids in easy emptying of the collected material. The external filter shaker keeps the vacuum performance and the filtration efficiency maximum during operation.
Specifications :
| Power | 5.5 KW |
|---|---|
| Voltage | 415 ± 5% / 50 Volts/Hz |
| Phase | 3 |
| Vacuum Pressure | 3790 Max |
| Air Flow | 530 m³/h |
| Filter Surface Area | 30,000 cm² |
| Collection Tank Capacity | 100 Liters |
| Suction inlet | 50 Dia mm |
| Filter Type | Star |
| Primary Filter Material - Efficiency | Polyester - L/M Media/Class |
| Protection | IP 55 |
| Insulation | F Class |
| Dimensions | 1125 X 630 ± 25 mm |
| Weight | 162 ± 2 Kg |
| Height | 1530 ± 25 mm |
