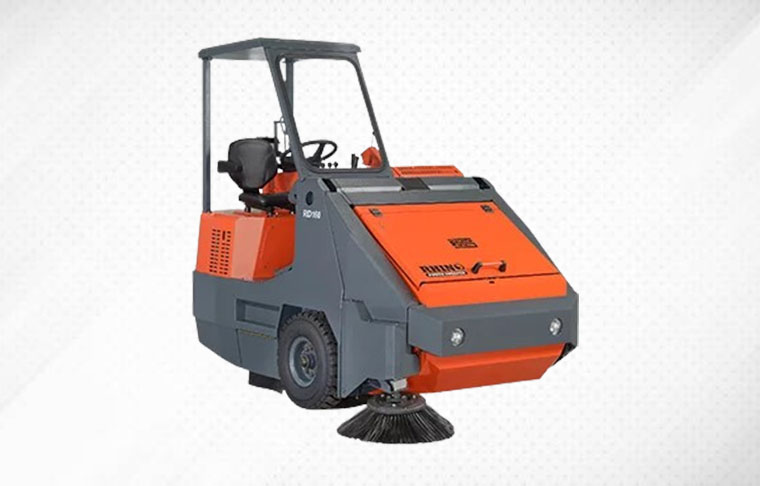

Diesel Operated Heavy Duty Industrial Ride On Sweeper
Features :
- Ideally suited for heavy duty Industrial applications.
- Large Hopper for extended sweeping.
- Efficient large filter surface area for effective & continuous dust absorption.
- Wider sweeping path, maximum productivity.
- Robust construction ideally suited for challenging terrains.
- Effective sweeping of dirt, dust, metal chips, bolts, wood and the likes.
- Headlamps for safe operation in low lit areas.
- High performance hydraulic system for both machine function and driving.
- Rear view mirror, reverse horn and tail lamps are fitted as standard accessory for operator convenience and safety.
- Driver’s cabin is available as an option.
- Proven fuel efficient diesel engine.
- Debris compact system.
Specifications :
| Length without side broom2640 mm | 1000 mm |
|---|---|
| Width without side broom | 1580 mm |
| Height (up to canopy) | 2320 mm |
| Dead weight | 1865 kg |
| Sweeping width with one side broom | 1650 mm |
| Theoretical sweeping performance | 17325 m²/hr @ 10.5 km/hr |
| Gradability | 20% |
| Filter area | 12 m² |
| Main broom length / Dia | 1220 / 360 mm |
| Side broom diameter | 660 mm |
| Hopper volume | 640 liters |
| Dump height | 1400 mm |
| Type | Mahindra 275TU-Diesel |
| Cubic capacity | 1892/3 |
| Rated power | 28.7KW/39 HP |
