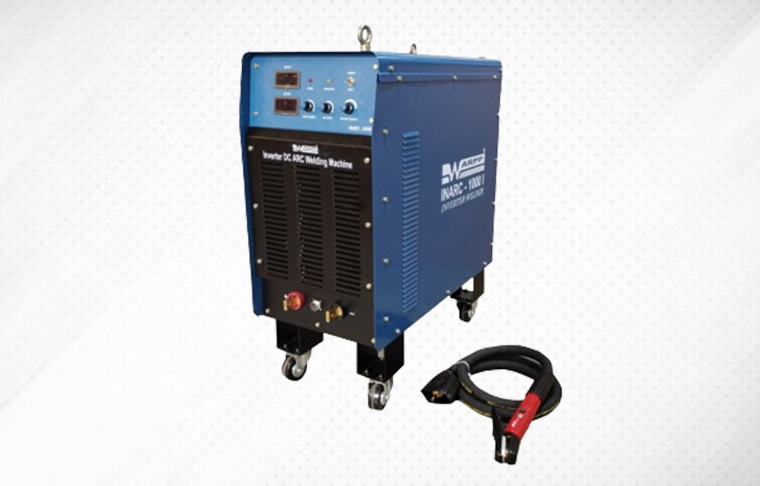

INARC 1000 I Inverter Type Arc Welding Machine
INARC I Series machines are IGBT inverter based arc welding power source with soft switching technology.They are widely used for Carbon arc gouging & manual metal arc welding with acid and basic electrodes.
Features :
- Advance Soft Switching inverter technology and high efficiency.
- Easy arc striking & stable arc.
- Digital display of current with precise preset function.
- Digital Display of Voltage.
- High power factor.
- High switching frequency,hence low volume &weight.
- Adjustable arc force.
- Can be used with extended welding cable.
Specifications :
| Model | INARC - 1000 I |
|---|---|
| Input supply | 380 ~ 440 V 3 - Phase 50 Hz Supply |
| Efficiency at full load (%) | 86 |
| Power Factor | 0.95 |
| Input Capacity(KVA) | 54 |
| Open Circuit Voltage | 75 ~ 85 Volts |
| welding Current Range(A) | 50 ~ 1000 |
| Rated Duty Cycle | 100% |
| Dimensions(L x W x H)mm | 820x420x940 |
| Weight (KG) | 95 |
| Ambient Temperature | 40oC |
| Type of Cooling | Forced Air Cooled |
